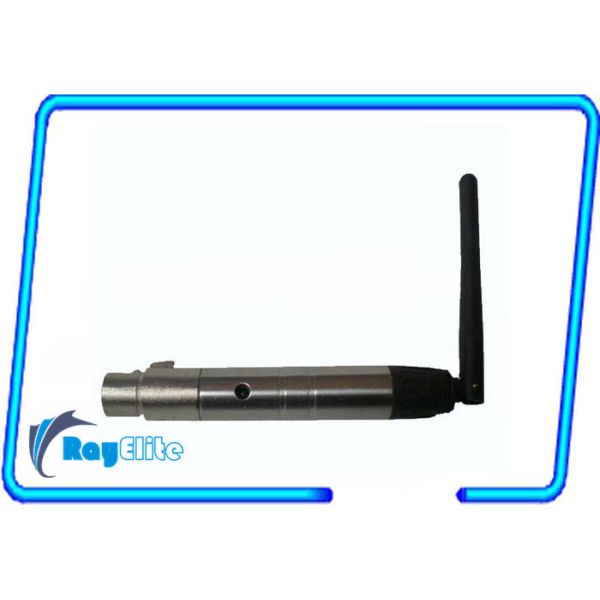

RGBW LED DFI lighting DMX 512 wireless Wifi Controller Ip 65 with OEM / ODM 3 pin

LED DFI lighting DMX 512 wifi wireless dmx transmitter and receiver controller

Quick Detail

Type: wifi dmx Control

Max. Load Power: 288W

Voltage: 24V

Power supply: 5V-24V DC

Certification: CE&ROHS&FCC

Life: 50,000h

Control Type: RGBW

DMX-512-connection: 3-pin

Ip rank: Ip 65

Output: 3 loop(RGB) and 4 loop(RGBW) Manual selection

Connection: Total Positive

Power consumption: 1w

Specifications

RGB and RGBW DMX512 controller

1. Manufacturer of DMX Controller

2. Provide OEM/ODM

3. CE&RoHS&FCC

4. 36 changing modes

Product Description :

1. Frequency-Agile 2.4Ghz Wireless DMX system with 512 channels and 7 groups

2. Input Voltage: AC100/240V, 50/60Hz

3. Work Voltage: 5VDC@500 mA

4. 7-color LED for ease of programming

5. One transmitter can communicate with multiple receivers

6. Frequencies: 126 frequency band – Selects strongest channel automatically

7. of units: up to 7 units can be set on an ID address

8. Effective Range: 100 Meters

9. Max. Emit Power: 20dBm

10. Receive Sensitivity: -94dBm

11. DMX connector: 3pin

12. Size: 25 x 220 mm

13. Weight: 0.15 Kg

Applications

Stage lighting, theatrical performances, stadium lighting, temporary staging, city lighting, te

levision broadcasting, conference centers, professional theaters, theme parks, dance halls

, bars, etc.

Detail & Effect

         RayElite Co. Ltd. is a specialist manufacturer for LED lighting system in entertainment and architectural applications. The company is founded in 2008 and located in GuangZhou. One of our goals is to develop safe, energy-efficient and long life performance LED lighting system to create a different color vision in the world. We also concentrate on every production process in order to assure of high reliability for our entire product ranges. We are committed to meet the lighting demand of our customers consistently and provide the best solutions with additional benefits.

         Our product ranges are widely used in many applications and environments, indoor or outdoor versions, ambient or accent lighting, mood or theme lighting. Products include spot luminaires, Led lamp and linear wall-washing systems, single, multi or colour changing options. Our LED controllers allow to apply our build-in programmed colour sequences to be chosen the mood of individual rooms or areas. Subtle soft, slow patterns or vivid, bold, dynamic routines. Or any fancy color you like!

         With year after year experience in the design, manufacture and installation of LED lighting systems. We have a wide ranging client base covering projects as diverse as theatres, museum, department store, shop, stage, wedding chamber, restaurant, pub, office building, public garden, airport and multi-purpose complex, etc. As well as offering a bespoke design service, our R&D team is capable to meet demand for any lighting designer demand and expectation. All of the OEM/ODM products are manufactured in-house to highest specification.

         RayElite will in constant innovates new products by combining state-of-the-art technology with friendly design. We pride ourself on our friendly service and aim to offer you the most suitable and effective lighting solution while giving your project the creative edge.
